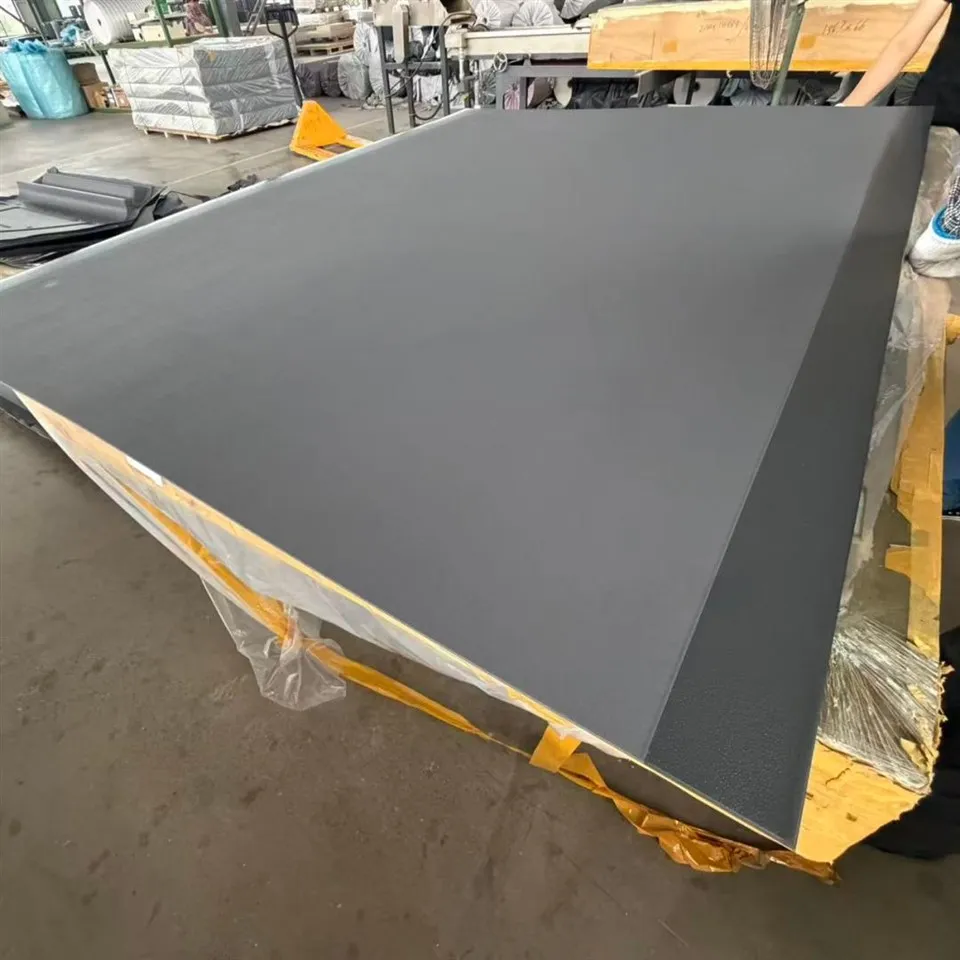

Product Overview
Our Flame Retardant ABS Sheet combines the inherent toughness and impact resistance of standard ABS with advanced flame-retardant additives, meeting stringent global fire safety standards. Engineered for applications where fire protection is non-negotiable – such as electronics housings, automotive interiors, public transit components, and industrial equipment – this sheet offers a unique balance of mechanical strength, processability, and self-extinguishing properties.
Whether you need UL94 V-0, V-2, or HB ratings, our FR ABS sheets deliver consistent performance, low smoke emission, and excellent thermal stability. Available in a wide range of thicknesses (0.5mm – 12mm), colors, and surface finishes (matte, gloss, textured), they are ready for thermoforming, vacuum forming, die-cutting, and CNC machining.
Key Features & Technical Advantages
| Parameter | Value/Benefit |
|---|---|
| Flame Rating | UL94 V-0, V-2, 5VA (customizable) |
| Oxygen Index (LOI) | ≥26% – self-extinguishing |
| Heat Deflection Temp (HDT) | 85–100°C (0.45 MPa) – retains shape under heat |
| Impact Strength (Izod) | 18–25 kJ/m² – superior to many FR plastics (e.g., FR-PC/ABS) |
| Tensile Strength | 35–45 MPa – good structural integrity |
| Density | 1.18–1.22 g/cm³ – lightweight compared to metal or FR-PP |
| Surface Resistivity | 10¹²–10¹⁴ Ω/sq (anti-static grades available) |
Certified Fire Safety Standards
Our Flame Retardant ABS Sheets are independently tested and comply with:
UL94 V-0, V-2, HB – Verified by UL yellow card (file number available upon request)
IEC 60695-11-10 – Glow wire ignition temperature (GWIT) ≥ 775°C
ASTM E84 – Class A or B for surface burning characteristics
BS 476 Part 7 – Class 1 surface spread of flame
NFPA 130 – Suitable for mass transit applications
GB/T 2408 – China national standard equivalents
Why Choose FR ABS over Other Flame-Retardant Materials?
Cost-effective
Lower price than FR polycarbonate or FR PPO, yet provides comparable fire performance for many applications.
01
Easy processing
Excellent flowability during thermoforming and injection molding; no special tooling required.
02
Aesthetic versatility
Can be produced in custom RAL colors, wood grain, or high-gloss finishes.
03
Low halogen options
We offer both halogenated (e.g., brominated) and halogen-free FR grades to meet RoHS, REACH, and eco-design directives.
04
Why Choose Us as Your FR ABS Sheet Supplier?
✅ In-house compounding – We control the FR formulation, ensuring batch-to-batch consistency.
✅ Third-party testing – Every shipment includes a Certificate of Analysis (CoA) with LOI, UL rating, and tensile data.
✅ Technical support – Our polymer engineers can help troubleshoot forming issues or recommend FR grades for UL94 V-0 certified assemblies.
✅ Eco-responsible – 100% recyclable production scrap. Halogen-free grades meet EU EN 45545-2 (railway fire safety).
