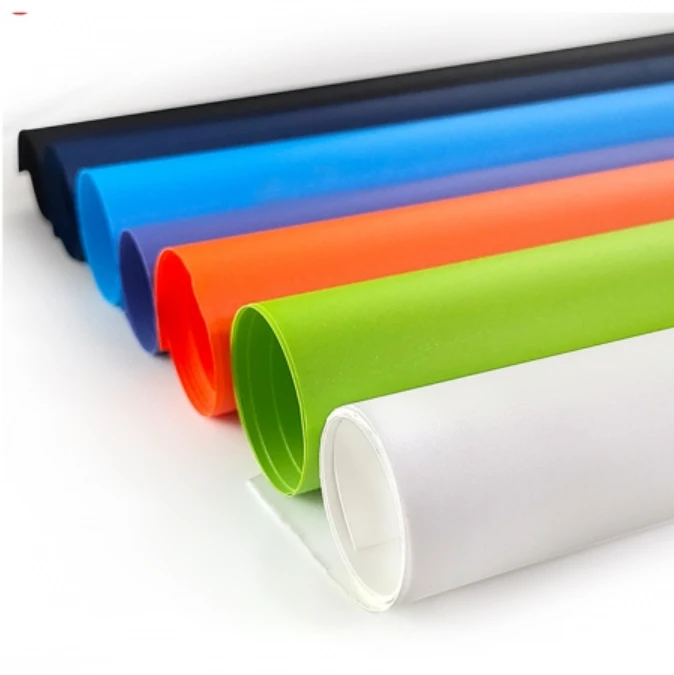

ABS Plastic Roll

The Versatile ABS Plastic Roll Solution



The ABS plastic roll (Acrylonitrile Butadiene Styrene) represents a pinnacle of engineering thermoplastic innovation, delivering exceptional mechanical properties in a convenient roll format. Designed to meet the rigorous demands of modern manufacturing, our ABS plastic roll offers outstanding impact resistance, excellent dimensional stability, remarkable thermal formability, and superior surface finish quality. Engineered for high-volume continuous processing, our ABS plastic roll is the premier material choice for vacuum forming, thermoforming, and die-cutting applications across automotive, electronics, consumer goods, and industrial manufacturing sectors.

Product Specifications: Precision-Engineered ABS Plastic Roll

Our ABS plastic roll is manufactured with meticulous quality control to ensure consistent thickness tolerance and superior surface finish. The ABS plastic roll can be supplied in jumbo rolls, slitted rolls, or customized strip configurations, providing maximum flexibility for your production requirements.

In addition to our standard ABS plastic roll offering, we also manufacture ABS thick sheet (also known as ABS thick plate) in gauges exceeding 2.0 mm, as well as ABS vacuum forming sheet optimized for deep-draw thermoforming applications requiring enhanced material flow and uniform thickness distribution.

Vacuum Forming Capabilities: Optimized for High-Speed Production

Our ABS plastic roll is purpose-engineered for exceptional performance on thin-gauge vacuum forming equipment. The material exhibits excellent thermal stability and uniform heating characteristics, enabling rapid production cycles with minimal waste.

Forming Speed Data:

Based on comprehensive testing on industrial multi-station vacuum thermoforming lines, our ABS vacuum forming sheet achieves the following cycle performance:

Cycle time: ≤ 36 seconds per part, with some high-speed configurations achieving cycles as short as 20 seconds per part.

Production rate: up to 72 sets per hour (for 4 mm thickness applications).

Compatible thickness range: 0.3 mm – 6.0 mm, with optimal performance in the 0.3–2.0 mm roll stock range.

The forming process utilizes vacuum-assisted molding where the softened ABS sheet is drawn against the mold contour, precisely replicating details as fine as 0.1 mm surface texture. This pressure-differential approach reduces energy consumption by up to 60% compared to mechanical pressure systems while extending mold life by more than three times.

For our ABS plastic roll within the 0.3–2.0 mm thickness range, the forming cycle can be further optimized due to reduced heating and cooling times, enabling even higher throughput for thin-wall applications such as electronic trays, blister packaging, and lightweight automotive components.

Material Science: Understanding ABS Plastic

ABS (Acrylonitrile Butadiene Styrene) is an amorphous thermoplastic terpolymer that combines three distinct monomer units to achieve an optimal balance of mechanical, thermal, and processing properties.

Molecular Structure:

Acrylonitrile (A): Provides the material with hardness, heat resistance, and excellent chemical resistance to a wide range of polar solvents and acids.

Butadiene (B): A rubber-like monomer that imparts outstanding impact resistance and toughness, particularly important for low-temperature performance down to -40°C.

Styrene (S): Delivers a rigid, stiff matrix with high surface gloss and excellent processability, enabling complex shapes and detailed surface textures.

Think of this structure as a tough matrix of styrene-acrylonitrile (the rigid "skeleton") reinforced with dispersed rubbery polybutadiene particles (the "shock absorbers"). This internal architecture gives ABS its characteristic combination of high impact strength, stiffness, dimensional stability, and ease of processing.

Key Material Properties:
